Sony PCS-1 - Video Conferencing

Video
Standards - H.261, H.263, H.263+, H.263++, H.264, MPEG-4@L3
Signal System - NTSC
Resolution - QCIF, CIF, Interlaced SIF
Bit Rate - Up to 768Kbps in H.320 video conferencing (including audio), Up to 2Mbps in H.323 video conferencing (including audio)
Frame Rate - Max. 30 frames/second

Audio
Bandwidth and Coding
MPEG-4 AAC mono 14kHz at 64 and 96Kbps (H.323) (line and mic)
G.711: 3.4kHz at 56/64Kbps
G.722: 7.0kHz at 48/56/64Kbps
G.722.1: 7.0kHz at 24Kbps (H.323)
G.723.1: 3.4kHz at 5.3/6.3Kbps (H.323)
G.728: 3.4kHz at 16Kbps
G.729: 3.4kHz at 8Kbps (H.323)
Echo Cancellation
Reduction rate - 30 dB
Echo path length - 340 ms (4kHz and below), 110 ms (4 to 8kHz), 56 ms (8kHz and above)
Automatic gain control included
Noise suppressor included

Graphics
4CIF: 704 pixels x 576 lines (H.261 Annex D and H.263 Base)
XGA: 1024 pixels x 768 lines (H.263)

Picture In Picture
Sub screen size: 1/9 (one of four corners)

Remote Commander® Unit
Format - Wireless SIRCS

Network Protocols
FTP (Server)
TELNET (Server)
HTTP (Server)
PING
SNMP (Agent)
DNS (Client)
DHCP (Client)
RTCP
RTP
ARP
TCP

ITU-T Standards
H.221, H.239
Bonding
H.281 FECC
H.225.0
H.245
H.320, H.323
T.120

Sony PCS-1 Camera Unit
Image Sensor - 1/4 type CCD
Horizontal Resolution - 470 TV lines
Focal Length - 3.1 to 31 mm (F1.8 to 2.9)
Focus - Auto/Manual
Iris- Auto
Horizontal View Angle - 6.6 to 65 degrees
Zoom Ratio - x10 (optical zoom), x40 (digital zoom)
Tilt Angle - Minus 25 to plus 25 degrees (max. 125 degrees/second)
Pan Angle - Minus 100 to plus 100 degrees (max. 300 degrees/second)
Preset - Up to 6 positions
S/N - More than 50 dB
Others - Back light shooting

Multipoint Video Conferencing Capabilities
Up to 6 sites (H.320)
Up to 6 sites (H.323)
Up to 10 sites (H.323) (note: Two PCS-1 units with PCS 323M1 installed must be used.)
Up to 6 sites (H.323 and H.320 combined)

I/F of PCS-1
Video
S-video input
Composite input
S-video output (x2)
Composite output
RGB output
IR for PCS DS150
Audio
Line input (RCA)
External microphone input (plug in power) (x2)
Line output (RCA) (x2)
Internal microphone
Graphics
RGB (XGA) output
Sony Memory Stick™
Memory Stick media slot
Network
10Base-T/100Base-TX
Digital Whiteboard
Dedicated Connector (Mimio Xi™)
Control
RS 232 /VISCA™ (mini-DIN 8-pin) for second camera
IR for Remote Commander unit

I/F of Sony PCS DSB1
Audio I/F
Microphone input (mini jack) (x5)
Line output (mini jack) to active speaker
AUX output (RCA)
AUX input (RCA)
Graphics
RGB (XGA, SVGA, VGA) input (x2)
RGB (XGA) output

I/F of Sony PCS-B768 -
ISDN: BRI (basic rate interface) (x6)

Environment -
Operating Temperature - 5°C to 35°C
Storage Temperature -minus 20°C to plus 55°C
Operating Humidity - 30% to 70%
Storage Humidity -25% to 75%

Power Consumption and Requirement
Consumption - DC 19.5 V, 3.5A
Requirement - AC 120 V, 50/60Hz

Weight and Dimensions (Sony PCS-1)
Camera Unit - 5.875(W) x 5.125(H) x 5.5(D) in., 2.5 lbs.
Remote Commander Unit - 2(W) x 1(H) x 7.75(D) in., 375 lbs. (including battery)
Communication Terminal - 10.25(W) x 2.25(H) x 6.75(D) in., 2.875 lbs.

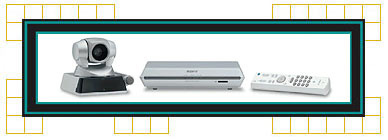

Supplied Accessories and System Components
Communication terminal
Camera unit
Remote Commander unit
Camera cable (0.25 m)
Velcro for communication terminal (x2)
Manganese battery for Remote Commander unit (x2)
Double-faced tape for camera unit (x3)
IR repeater (x2)
AC adaptor
S-video cable (1.5 m)
Audio cable (1.0 m)
Warranty card
Operation manual

Network Certifications
Glowpoint™
Cisco AVVID™
