Sony PCS-11 - Video Conferencing

Video (PCS-11)
Signal system - NTSC
Standards - H.261, H.263, H.263+, H.263++, H.264
Resolution - QCIF, CIF
Frame rate - Max 30 frames/second
Bit rate - Up to 1Mbps in H.323 video conferencing (including audio), Up to 768Kbps in H.320 video conferencing (including audio)

Audio (PCS-11)
Bandwidth and Coding
11: 3.4kHz at 56/64Kbps
G.722: 7.0kHz at 48/56/64Kbps
G.728: 3.4kHz at 16Kbps
Echo Cancellation
Reduction rate - 30 dB
Echo Path Length - 340 ms (4kHz and below), 110 ms (4 to 8kHz)
Noise suppressor included
Automatic gain control included

Graphics
4CIF: 704 pixels x 576 lines
(H.261 Annex D and H.263 Base)

Picture in Picture
Sub screen size: 1/9 (One of four corners)

Remote Commander® Unit
Format - Wireless SIRCS

ITU-T Standards
H.320, H.323
H.221, H.239
Bonding
H.281 FECC
H.225.0
H.245
T.120

Network Protocols
TELNET (Server)
HTTP (Server)
FTP (Server)
SNMP (Agent)
PING
DNS (Client)
DHCP (Client)
RTCP
RTP
TCP
ARP

Lip Synchronization
Manual On/Off

PCS-11 Camera Unit
Image sensor - 1/4 Type CCD
Horizontal resolution - 470 TV Lines
Focal length -3.1 to 31 mm (F1.8 to 2.9)
Focus - Auto/Manual
IRIS - Auto
Horizontal view angle - 6.6 to 65 degrees
Zoom ratio - x10 (optical zoom), x40 (digital zoom)
Pan angle - Minus 100 to plus 100 degrees (max. 300 degrees/second)
Tilt angle - Minus 25 to plus 25 degrees (max. 125 degrees/second)
Preset - Up to 6 positions
S/N - More to 50 dB
Others - Back light shooting

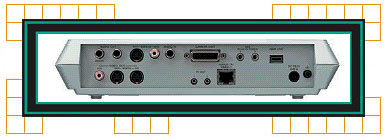

I/F of PCS-11
Video
S-video input
Composite input
S-video output (x2)
Composite output
IR for PCS DS150
Audio
Line input (RCA)
External microphone input (plug in power) (x2)
Line output (RCA) (x2)
Internal microphone
Network
10Base-T/100Base-TX
Memory Stick™
Memory Stick media slot
Control
RS-232C for external controller
VISCA™ (mini-DIN 8-pin) for second camera
SIRCS IR output for TV monitor (x2)
IR for Remote Commander unit

I/F of PCS 8768
ISDN: BRI (Basic Rate Interface) (x6)

I/F of PCS 8384
ISDN: BRI (Basic Rate Interface) (x2)

Power Requirements and Consumption
Requirement - AC 120 V, 50/60Hz
Consumption - DC 19.5 V, 3.5A

Environment
Operating temperature - 5°C to 35°C
Operating humidity - 30% to 70%
Storage temperature - Minus 20°C to plus 55°C
Storage humidity - 25% to 75%

Weight and Dimensions
Communication Terminal - 10.25(W) x 2.25(H) x 6.75(D) in., 2.875 lbs.
Camera Unit - 5.875(W) x 5.125(H) x 5.5(D) in., 2.5 lbs.
Remote Commander Unit - 2(W) x 1(H) x 7.875(D) in., 0.375 lb. (includes battery)

Supplied Accessories and System Components
Communication terminal
Camera unit
Remote Commander unit
Camera cable (0.25 m)
AC adaptor
IR repeater (x2)
Manganese battery for Remote Commander unit (x2)
Velcro for communication terminal (x2)
Double faced tape for camera unit (x3)
Audio cable (1.0 m)
S-video cable (1.5 m)
Operation manual (English, Japanese, French, Spanish, Italian, German, Portuguese, Simplified Chinese, Traditional Chinese)
Quick Reference Guide
Warranty card
